# Export Model from SolidWorks

1.  Ensure that the model contains an Exploded View. The exploded view should step through the desired assembly steps.

<figure><img src="https://2704613365-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxYaaXoZ4YGbVdAnAhdcE%2Fuploads%2FaXV4Cy9dxSAxwZhd8XUE%2F9.png?alt=media&#x26;token=dda539f8-bdc7-4eb8-82ab-d14a1ce210e0" alt=""><figcaption></figcaption></figure>

2. &#x20;Click on the Gear  ![](https://2704613365-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxYaaXoZ4YGbVdAnAhdcE%2Fuploads%2FG07w7ttufLgAi9sa6ls0%2Fimage100.png?alt=media\&token=096d8944-dc84-4f2e-9f0a-6c444f393923) icon in the top toolbar and select Add-Ins...

<figure><img src="https://2704613365-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxYaaXoZ4YGbVdAnAhdcE%2Fuploads%2FZLcgTvjKl42lImf3s4bX%2F1.1.png?alt=media&#x26;token=42e66a24-b8a7-41bc-b10e-5df194de1011" alt=""><figcaption></figcaption></figure>

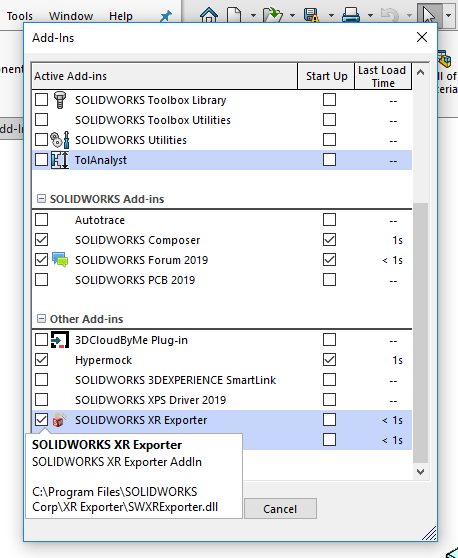

3. &#x20;Make sure SOLIDWORKS XR Exporter is checked

<figure><img src="https://2704613365-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxYaaXoZ4YGbVdAnAhdcE%2Fuploads%2FD7rQWexspN0xW9ZeA5GR%2F1.2.png?alt=media&#x26;token=1bcb04f3-1f06-44a6-9fab-c9935cf5a710" alt=""><figcaption></figcaption></figure>

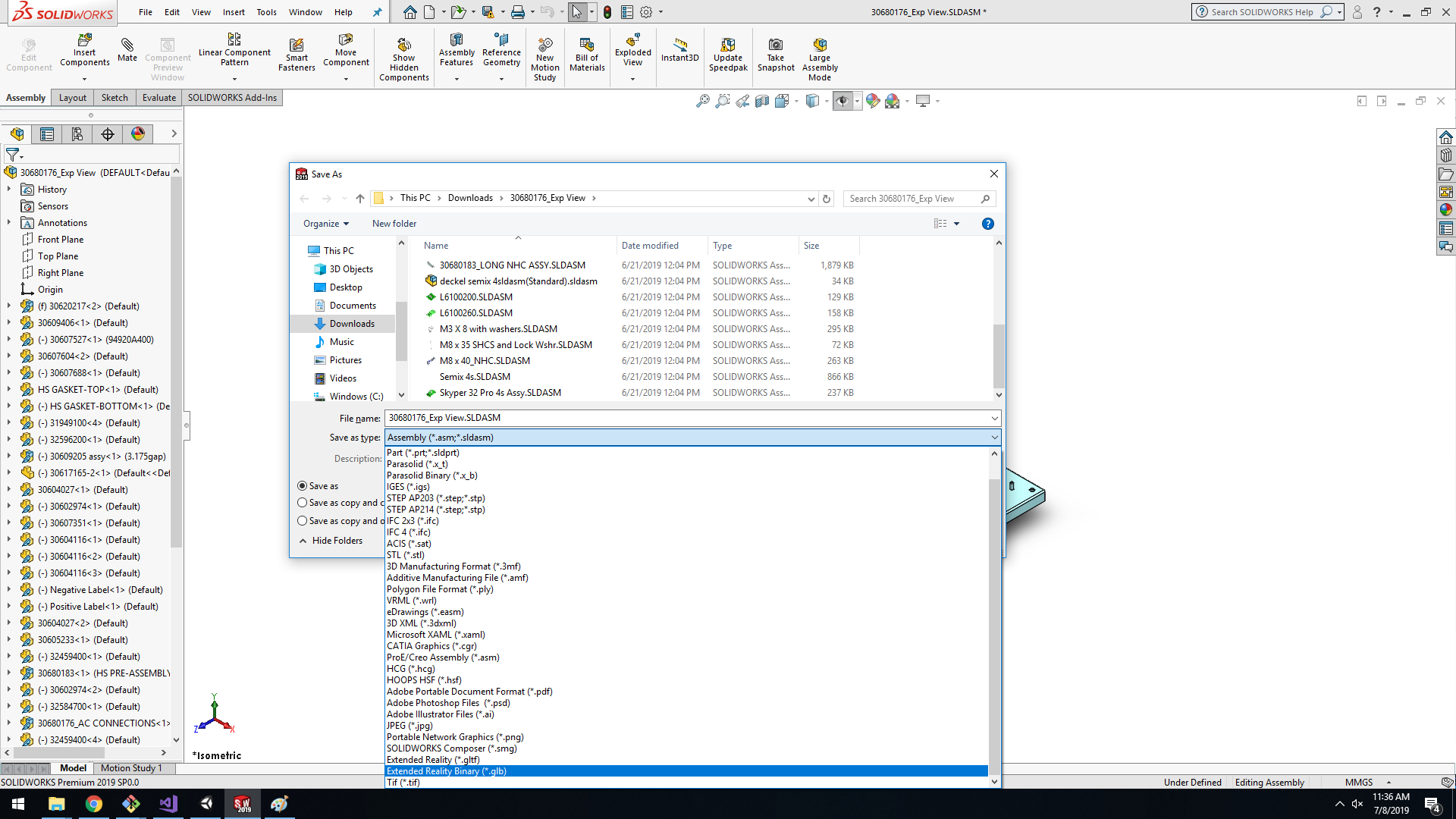

4. &#x20;Save the model and set “Save as type” to Extended Reality Binary (\*.glb)

<figure><img src="https://2704613365-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxYaaXoZ4YGbVdAnAhdcE%2Fuploads%2FUpHx2mIxAH4oeTwp2bXp%2F12.png?alt=media&#x26;token=b45318fc-af24-4c62-ac7a-ff0501216576" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2704613365-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxYaaXoZ4YGbVdAnAhdcE%2Fuploads%2F9sYLUimms7k7zvApH7lP%2F13.png?alt=media&#x26;token=565a8dfc-ea90-419c-bd70-ae2377539152" alt=""><figcaption></figcaption></figure>

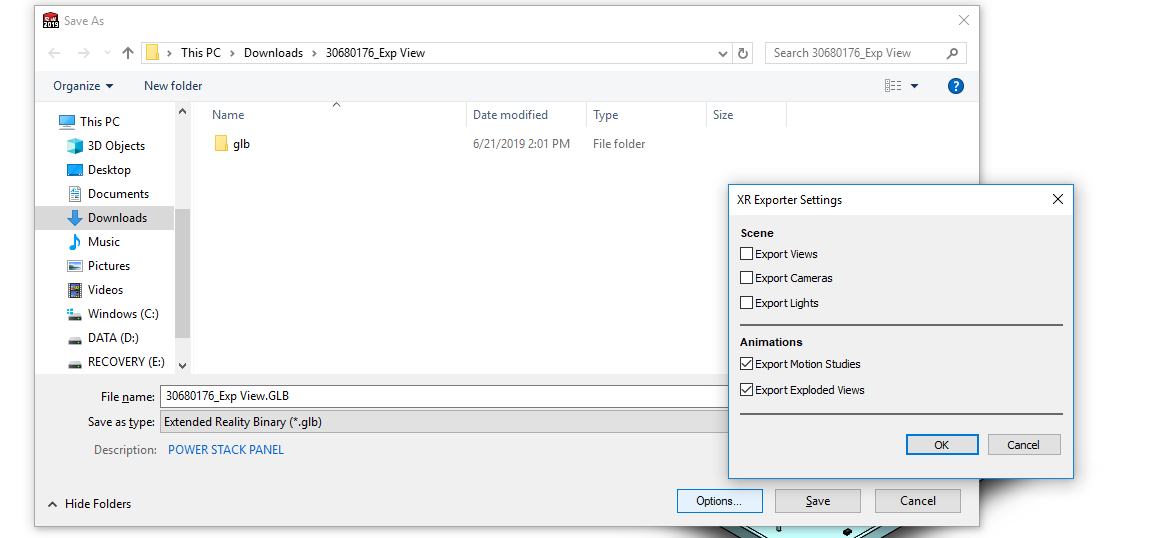

5. &#x20;Click on Options and make sure Export Exploded View is selected.

<figure><img src="https://2704613365-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxYaaXoZ4YGbVdAnAhdcE%2Fuploads%2FECpqyDUPDAGNwEKAB2Hv%2F14.png?alt=media&#x26;token=2f248adb-b316-4c31-a595-a4a3ff263c83" alt=""><figcaption></figcaption></figure>
